5200 SERIES SUBLINEAR FIXED

Seamless Design | Monumental Precision

The 5200 Series Sublinear Fixed is engineered as the perfect companion to our sliding and pivot door systems. Crafted for those who demand maximum view with minimal frame, every detail is designed to recede into the background, letting light and landscape take center stage.
Consult an Expert
Join as a Professional

Defining Features

  • Flush Integration i Frame installs fully flush with surrounding finishes, exposing only the frame edge and gasket for a clean, minimal reveal.
  • Effortless Glass Replacement i Glass can be installed or replaced with minimal to no disruption to surrounding finishes, reducing downtime and rework.

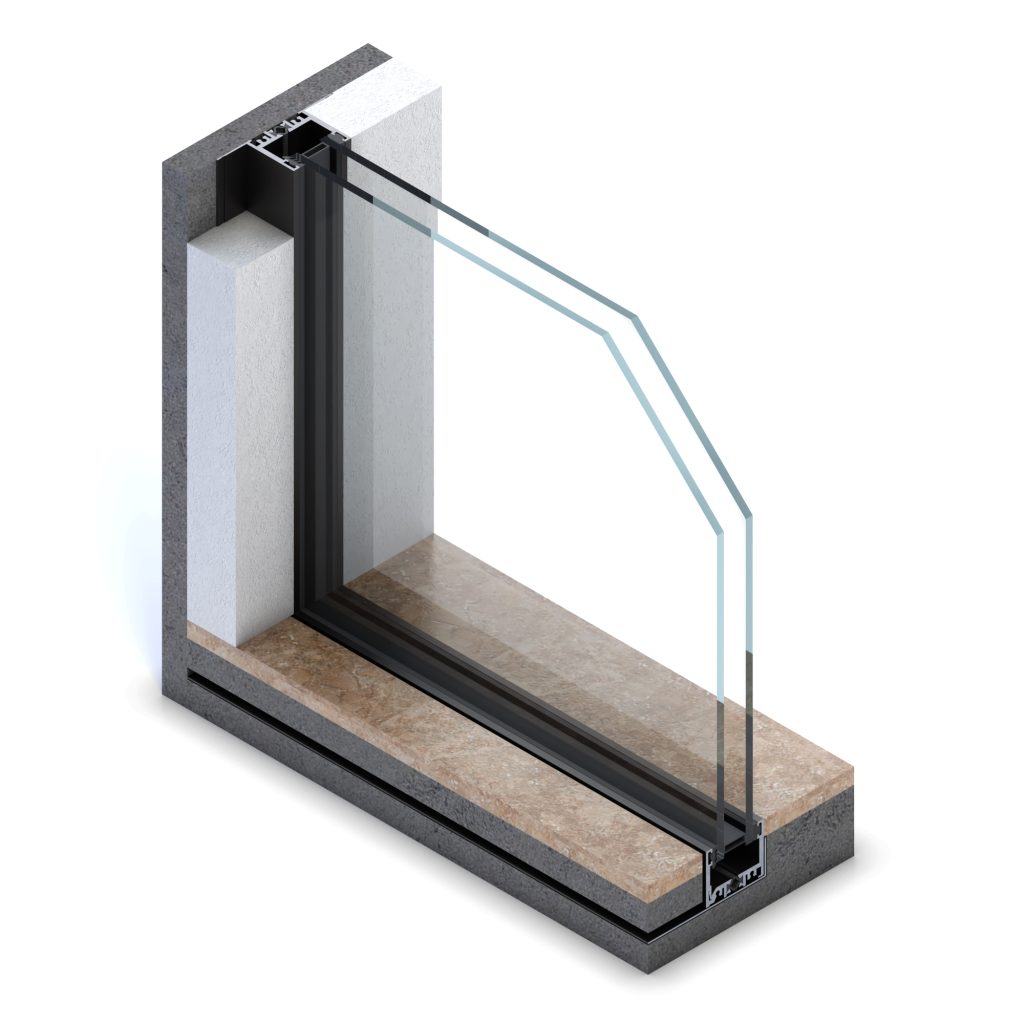

  • Custom Configurations i Supports corner conditions, notches, curves, and other custom geometries tailored to your project requirements.
  • Design Flexibility i Available in recessed or flush installation options to align with your architectural intent and sightline preferences.

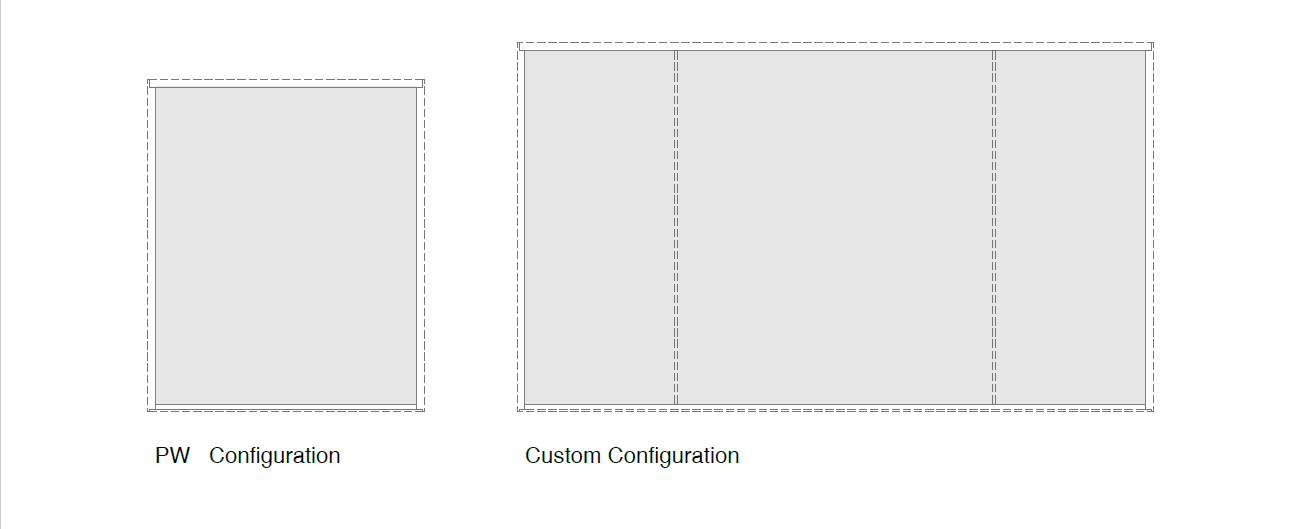

Inspired Configurations

  • Thermal Strut Technology i Integrated thermal struts maximize energy efficiency by reducing heat transfer across the frame assembly.
  • Fully Embedded Frame Option i Frame can be fully embedded into the surrounding structure to achieve a seamless, flush architectural appearance.
  • Extra-Large Glass Capability i Accommodates glass thicknesses up to 1-3/8", making it ideal for extra-large panels and high-performance glazing.
  • Removable Nailing Fins i Easily removable nailing fins provide added flexibility for new construction or retrofit installation scenarios.
  • Sill Pan Options i Standard and draining sill pan options enhance water management, performance, and long-term durability.

Curated Luxury Options

  • Optional “Slim” Vertical Intermediate i Optional slim 1" × 3" vertical intermediate offers additional structural support in multi-lite frame configurations.
  • Pre-Glazed Frame Availability i Pre-glazed frames are available for units up to 40 square feet, streamlining installation and improving jobsite efficiency.
  • Field Glazing Flexibility i Field glazing supports interior or exterior flush-set installation to accommodate site conditions and design intent.
  • Flexible Glass Stop Placement i Glass stops may be positioned at the bottom, side, or top to suit structural requirements and aesthetic preferences.
  • Post-Installed Vertical Intermediate i Vertical intermediate can be installed after the frame is set, providing added adaptability during installation.

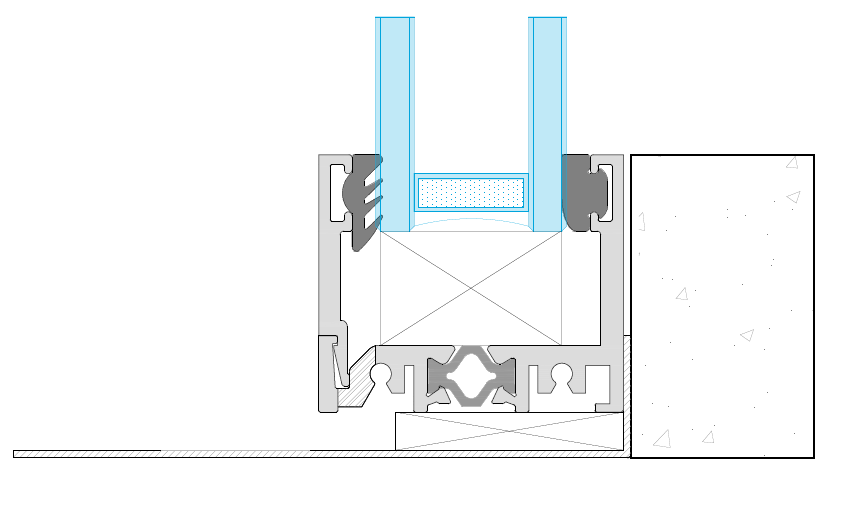

5200Series.Sill.options.2

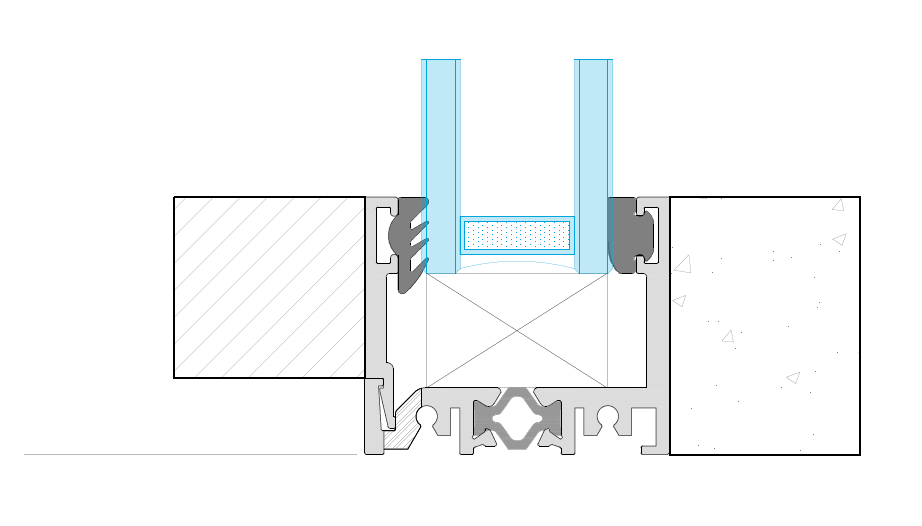

5200Series.Sill.options.1

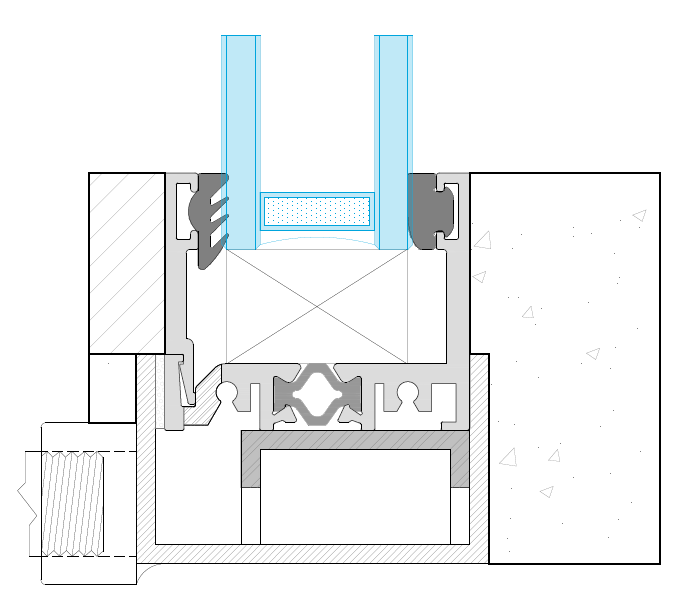

5200Series.Sill.options.4

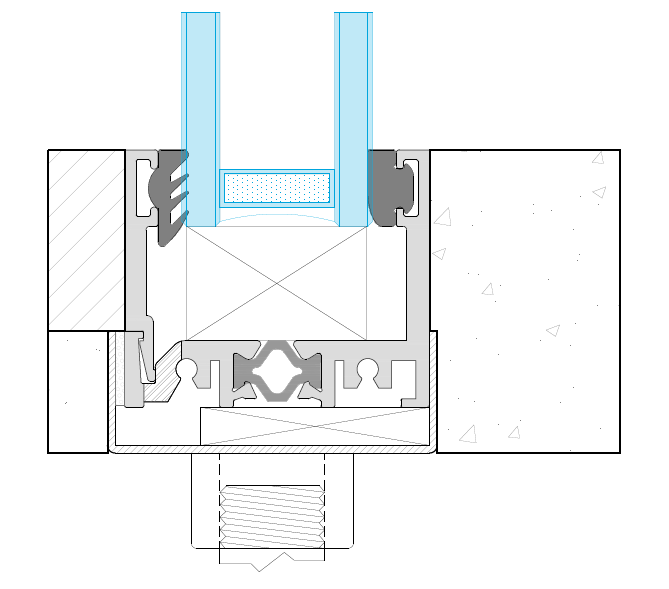

5200Series.Sill.options.3

Where Transparency Becomes Luxury

With its fully recessed frame and expansive glass capabilities, the 5200 Series Sublinear Fixed transforms walls into uninterrupted views. Every detail, from thermal performance to customizable geometry ensures a system that merges architecture and landscape seamlessly.

Elevate your design with Monumental’s 5200 Sublinear Fixed windows

Hand-crafted in Palm Desert, admired worldwide.
