4551 VARI-SLIDE SLIDING GLASS DOOR SYSTEM

Timeless Design | Monumental Strength

The 4551 Vari-Slide™ marries thermally-broken engineering with narrow profiles, flush sills, and limitless layout freedom. Multiple large telescoping panels pocket or stack to erase boundaries and frame uninterrupted vistas—perfect for modern coastal homes, desert retreats, and resort villas.
Consult an Expert
Join as a Professional
Coastal living room with Monumental 4551 Vari-Slide aluminum sliding glass wall opening to ocean view

Defining Features

  • Thermally-Broken Aluminum Construction i Aerospace-grade billets paired with precision polyamide struts slash heat transfer and condensation.
  • Concealed Slim-Track™ System i A flush 1″ floor track keeps interiors level while maintaining clean, unobstructed sightlines.
  • Barefoot Sill i A flush sill that sits level with flooring inside and out while integrating a draining sill pan.
  • Flush Hardware i Flush pulls with finger-touch actuation paired with a maximum-security laminated deadlock.
  • Fully Customizable i Options available for secondary locks, motorization, 1″ stiles, and more.

Inspired Configurations

  • Expansive Multi-Panel Openings i Configure expansive openings with multiple sliding or pocketing panels. Consult the factory for large assemblies.
  • Multi-Slide · Pocketing · Corner Assemblies i Create dramatic, unobstructed corners that open fully without a post.
  • Large Panel Sizes i Up to 84″ maximum width, with a maximum frame height of 144″ on the 3-1/2″ bottom rail (72″ on the 2-3/4″ bottom rail) and up to 60 sq ft of glass per panel. Larger glass sizes require engineering review.

Curated Luxury Options

  • Custom Angle – Inverted Corner Assemblies i Custom-angled inverted corner assemblies that open living spaces by removing visual barriers and creating expansive, unobstructed corner views.

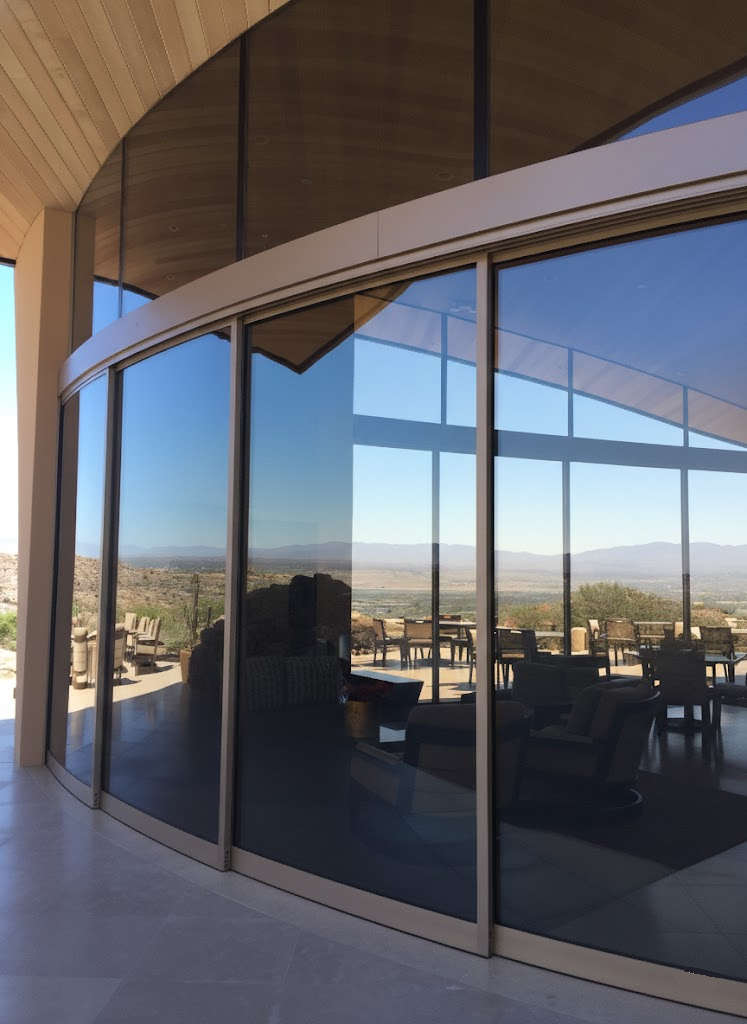

  • Curved – Radius Assemblies i Curved and radius assemblies that soften architectural lines and create fluid transitions between interior and exterior spaces.
  • Premium Finishes i Offered in Dark Bronze Anodized, Clear Anodized, or any custom Kynar® color.
  • Glass Packages i 1″ IGU capacity. High-performance low-e, laminated; acoustic, security/impact.
  • Custom Pulls & Locks i Choose from our proprietary flush locking assembly, keyed or keyless electronic access, or concealed flush locking system.
  • Panelized Insect Screen i Interior placement keeps it clean and protected.
  • Thin-Stile Intermediates i Select standard or thin intermediate interlock stiles.
  • Motorization and Home-Automation Integration i Select motorization and E-lock fabrication options for modern home-automation systems.

Custom Craftsmanship

Every Vari-Slide™ system is built here in Palm Desert, ensuring precision, quick turnaround, and quality in bespoke projects. Our design team collaborates with architects, builders, and homeowners to tailor panel sizes, finishes, and performance packages to each space.

Precision-Bearing Glide Options

All roller systems are fully adjustable and fabricated from marine-grade stainless steel for enduring coastal resilience.

1.5″ Tandem EZ-Glide in 2-3/4″ bottom rail

  • ✔ Supports panels up to 550 lb with a 1.5″ diameter wheel
  • ✔ Stainless steel wheel and housing

1.8″ Tandem Super-Glide in 3-1/2″ bottom rail

  • ✔ Supports panels up to 700 lb with a 1.8″ diameter wheel
  • ✔ Certified performance for effortless panel operation over time
  • ✔ Stainless steel wheel and housing

1.8″ Quad assembly in 3-1/2″ bottom rail

  • ✔ AAMA certified to 1,300 lb; supports panels up to 1,000 lb
  • ✔ Reduced rolling resistance and smoother, quieter operation
  • ✔ Stainless steel wheel and housing

4551 Vari-Slide FAQs

The Monumental 4551 Vari-Slide is a telescoping multi-panel sliding window wall whose panels stack behind one another or pocket into the wall. The 4501 Series is Monumental’s traditional multi-panel slider. Both accept panels up to 84″ wide, a frame height up to 144″ and up to 60 sq ft of glass; the 4551 adds pocketing, flush stacking, Concealed Slim-Track™, and 135°, custom-angle, inverted and radius corner assemblies.

Pocket wall depth and rough opening for a pocketing Monumental 4551 Vari-Slide depend on panel count, panel size and stacking direction, so there is no single figure. Pocket width and depth for each configuration are shown on the 4551 CAD drawings, which registered architects and dealers can download free from the Professionals portal on monumentalwd.com.

The Monumental 4551 Vari-Slide Barefoot Sill is a 1″ flush sill that sits level with the floor inside and out over a sill pan. Standard sill pans direct water to the exterior plane of the building; draining sill pans include couplings that can be plumbed to an exterior drain line. The 4551 CAD set also shows slot-drain and concealed-drain details at pocket conditions.

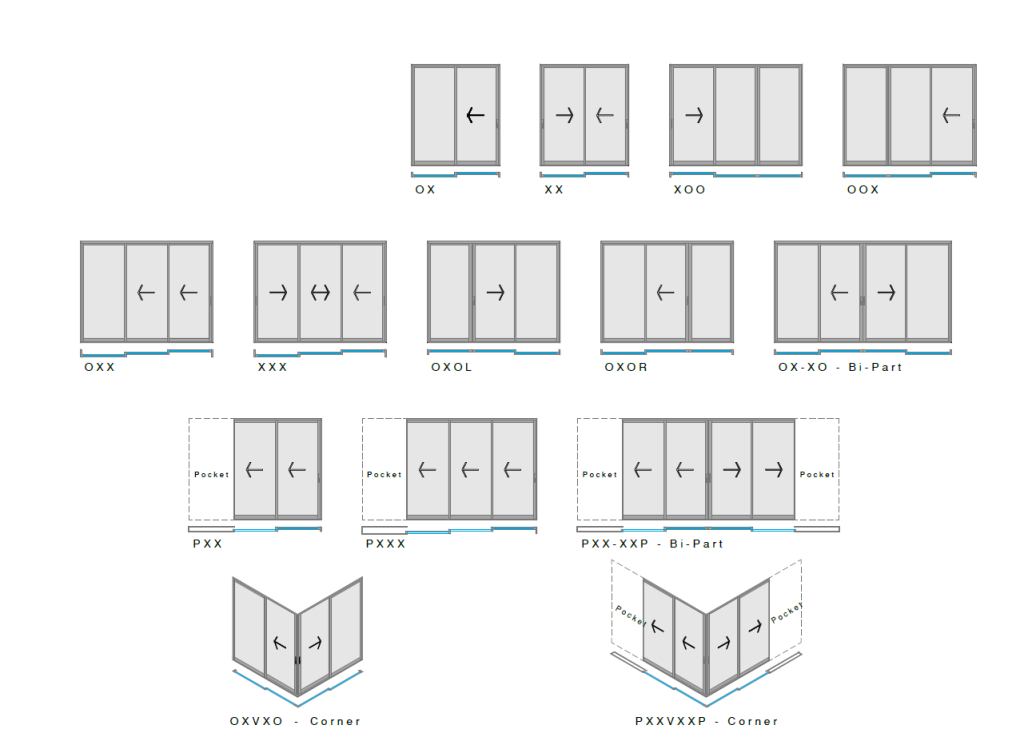

The Monumental 4551 Vari-Slide slides in one direction, bi-directionally, or bi-parts, in standard and pocketing versions. Configurations include OX, OXX, XX, XXX, OOX, XOO, OXOR, OXOL, OX-XO and PXX-XXP bi-parting, OXVXO and PXXVXXP corners, and PXX and PXXX pocketing layouts. Corner options are 90°, pocket corner, 135°, custom-angle, inverted and radius. Motorization is available for every configuration except bi-directional layouts, including bi-parting, corner, pocketing and radius. Other configurations are available on request.

Slide beyond limits with the 4551 Vari-Slide™ Sliding Glass Door.

Hand-crafted in Palm Desert, admired worldwide.
